D-Link · Security cameras

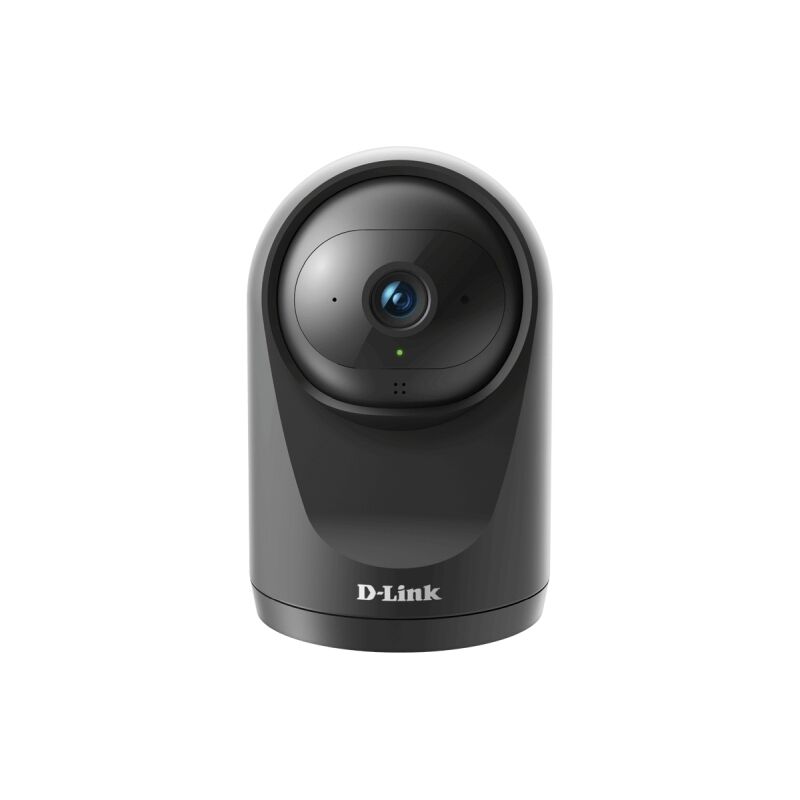

D-Link DCS-6500LHV2 Compact Full HD Pan & Tilt Wi-Fi Camera
The DCS-6500LHV2 is an indoor Wi-Fi camera with 1920 × 1080 video, motorised pan and tilt, built-in microphone and speaker, motion/sound alerts, automatic motion tracking and infrared night vision to 5 m. It connects to a 2.4 GHz 802.11n/g network and uses the mydlink app for setup and remote viewing.
Useful features
At a glanceFull HD at 15 fps
Full HD at 15 fps: provides the video capture specification.
Motorised pan and tilt
Motorised pan and tilt: changes the view through supported remote controls.
Automatic motion tracking
Automatic motion tracking: supplies the tracking function.
Infrared up to five metres
Infrared up to five metres: provides the manufacturer's conditional night-vision range.
Two-way audio
Two-way audio: uses the built-in microphone and speaker.
Motion and sound detection
Motion and sound detection: supports the alert workflow.
microSD up to 256 GB
microSD up to 256 GB: accepts a separate compatible card for local recording.
2.4 GHz Wi-Fi
2.4 GHz Wi-Fi: connects through supported 802.11n/g networking rather than Ethernet.
mydlink setup
mydlink setup: requires a compatible app, account, router and internet service.
190 g camera body
190 g camera body: records the mass with the manufacturer's ±5% tolerance.
The useful features
- Full HD at 15 fps: provides the video capture specification.
- Motorised pan and tilt: changes the view through supported remote controls.
- Automatic motion tracking: supplies the tracking function.
- Infrared up to five metres: provides the manufacturer's conditional night-vision range.
- Two-way audio: uses the built-in microphone and speaker.
- Motion and sound detection: supports the alert workflow.
- microSD up to 256 GB: accepts a separate compatible card for local recording.
- 2.4 GHz Wi-Fi: connects through supported 802.11n/g networking rather than Ethernet.
- mydlink setup: requires a compatible app, account, router and internet service.
- 190 g camera body: records the mass with the manufacturer's ±5% tolerance.
The useful details
Know what
you’re getting.
The DCS-6500LHV2 is an indoor Wi-Fi camera with 1920 × 1080 video, motorised pan and tilt, built-in microphone and speaker, motion/sound alerts, automatic motion tracking and infrared night vision to 5 m. It connects to a 2.4 GHz 802.11n/g network and uses the mydlink app for setup and remote viewing.
It can record to a separate compatible microSD card up to 256 GB or use mydlink cloud recording under the applicable plan. The exact V2 manual lists the camera, a Micro USB power adapter and a Quick Installation Guide.
Neither creates an outdoor rating for this indoor model. A stable upload connection matters for remote use: the manual recommends at least 1.5 Mbps for live viewing or 3 Mbps for cloud recording. The memory card is separate and must meet the compatibility and formatting requirements. Cloud features remain dependent on current service terms rather than a permanent free-recording promise.
Connect the included 5 V/1 A Micro USB power adapter and use an Internet-connected router with a 2.4 GHz 802.11n/g Wi-Fi network. Install mydlink on a compatible iOS or Android device, register/sign in with an email account, then add the camera while the mobile device is on the target Wi-Fi. Position indoors with stable Wi-Fi and power that will not be switched off inadvertently.
An indoor Full HD Wi-Fi camera with motorised pan and tilt.
Lets users change the viewing direction and track detected motion.
Lets users change the viewing direction and track detected motion.
Useful for people who need this function: Lets users change the viewing direction and track detected motion.
Lets users change the viewing direction and track detected motion.
A closer look
Specifications.
The details that matter.
Specifications
Compatibility
2.4 GHz 802.11n/g Wi-Fi and WPA3 are listed; no Ethernet port. The mydlink app requires a compatible iOS or Android device and account. Optional local recording accepts microSD/SDHC/SDXC cards up to version 3.01 and 256 GB, formatted FAT32 in the app; cards are separate. Cloud recording depends on current plan terms. The manual recommends at least 1.5 Mbps upload for live viewing or 3 Mbps for cloud recording.
Use and product notes
Connect the included 5 V/1 A Micro USB power adapter and use an Internet-connected router with a 2.4 GHz 802.11n/g Wi-Fi network. Install mydlink on a compatible iOS or Android device, register/sign in with an email account, then add the camera while the mobile device is on the target Wi-Fi. Position indoors with stable Wi-Fi and power that will not be switched off inadvertently.
Indoor use only, 0–40 °C and up to 90% relative humidity without condensation. The exact V2 manual says not to open or repair the device. Disconnect power before gently wiping with a damp towel; do not submerge it or use liquid cleaners or solvents. Secure the camera and keep the adapter plugged into an outlet that is not controlled by a wall switch.
Indoor use. No Ethernet port. Verify current cloud terms and supported storage cards.
Internet-connected 2.4 GHz Wi-Fi router, mobile device and mydlink account are needed for setup. Use the included adapter rather than a substitute of different voltage.
microSD card up to 256 GB
mydlink cloud recording plan
190 g ±5% camera body; retail pack/shipping mass is separate.
77 × 77 × 121 mm camera body; D-Link does not name dimension axes in the V2 sheet.
Micro USB adapter input 100–240 V AC at 50/60 Hz; output 5 V DC 1 A. Maximum camera consumption 4 W ±5%, with 1.5 m cable. Wireless operation is 2.4 GHz 802.11n/g with WPA3 listed. Exact V2 worldwide sheet does not explicitly list AU RCM; do not infer it from the older DCS-6500LH sheet.
