D-Link DCS-8331KT Smart DIY Security Bundle
The DCS-8331KT groups a DCS-8330LH indoor 1080p camera with built-in Zigbee hub, a DCH-B112 magnetic door/window sensor and a DCH-B122 motion sensor. Put the camera where it has 2.4 GHz Wi-Fi and mains power, and place the battery-operated sensors in their intended positions.
Useful features
At a glanceThree-device security bundle
Three-device security bundle: combines DCS-8330LH, DCH-B112 and DCH-B122.
1080p at 30 fps
1080p at 30 fps: gives the camera's capture specification.
151-degree diagonal view
151-degree diagonal view: identifies the fixed camera viewing angle.
Five-metre infrared range
Five-metre infrared range: supports the night-vision mode.
Two-way camera audio
Two-way camera audio: uses the built-in microphone and speaker.
Built-in Zigbee hub
Built-in Zigbee hub: connects the included compatible sensors through the camera system.
Door/window contact sensor
Door/window contact sensor: detects opening and closing and includes a bypass control.
PIR motion sensor
PIR motion sensor: detects movement up to the five-metre range.
microSD and ONVIF recording
microSD and ONVIF recording: require separate compatible storage or recording equipment.
Detection zones
Detection zones: include the person, boundary-crossing and priority-zone functions.
The useful features
- Three-device security bundle: combines DCS-8330LH, DCH-B112 and DCH-B122.
- 1080p at 30 fps: gives the camera's capture specification.
- 151-degree diagonal view: identifies the fixed camera viewing angle.
- Five-metre infrared range: supports the night-vision mode.
- Two-way camera audio: uses the built-in microphone and speaker.
- Built-in Zigbee hub: connects the included compatible sensors through the camera system.
- Door/window contact sensor: detects opening and closing and includes a bypass control.
- PIR motion sensor: detects movement up to the five-metre range.
- microSD and ONVIF recording: require separate compatible storage or recording equipment.
- Detection zones: include the person, boundary-crossing and priority-zone functions.
The useful details
Know what
you’re getting.
The DCS-8331KT groups a DCS-8330LH indoor 1080p camera with built-in Zigbee hub, a DCH-B112 magnetic door/window sensor and a DCH-B122 motion sensor. Put the camera where it has 2.4 GHz Wi-Fi and mains power, and place the battery-operated sensors in their intended positions. The camera offers 1920 × 1080 video at up to 30 fps, a 151° diagonal view, 5 m infrared range and a microphone/speaker. The door sensor detects opening or closing and has a bypass button. The PIR motion sensor detects movement up to 5 m and can trigger app alerts or compatible automations.
The three devices have separate body measurements and power requirements; the camera uses a 5 V/2 A Micro USB adapter, the door sensor a CR2 cell, and the motion sensor a CR2450 coin cell. For recording, use a separately supplied compatible microSDXC card up to 256 GB, an applicable mydlink cloud plan, or a compatible ONVIF Profile S recorder. App/account, Internet service and compatible network setup are required.

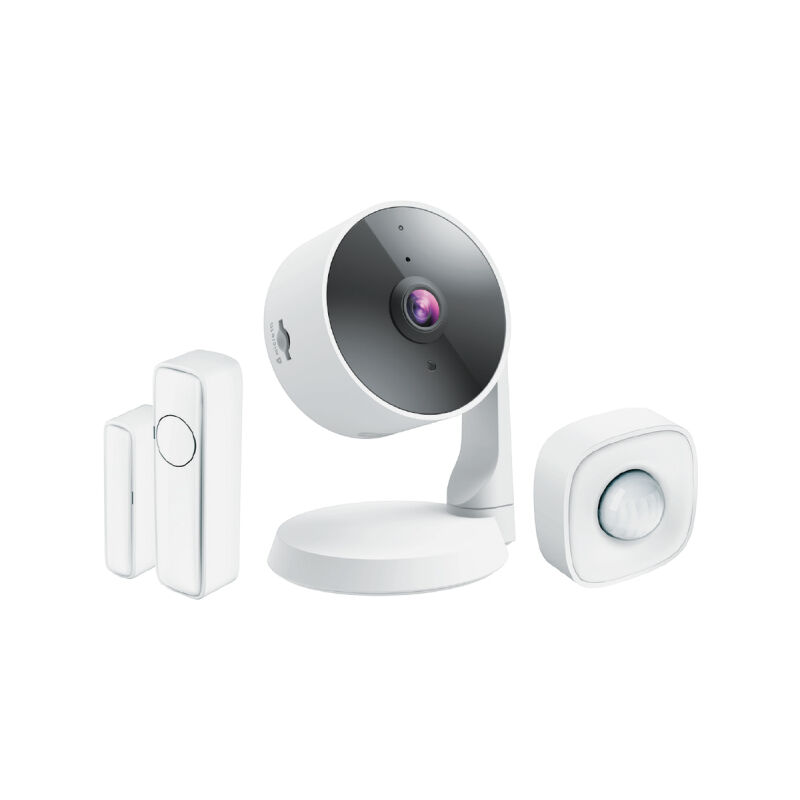

A three-device kit: DCS-8330LH indoor Full HD camera with smart-home hub, DCH-B112 door/window contact sensor and DCH-B122 motion sensor.
Shows live camera video and sends motion, person, sound and opening alerts through a compatible mydlink setup. The camera provides the Zigbee smart-home hub for the two sensors.
Indoor monitoring of a room, one door or window, and a separate motion zone, with app notifications and optional recording.
Useful for people who need this function: Indoor monitoring of a room, one door or window, and a separate motion zone, with app notifications and optional recording.
Combines live video with compatible door/window and motion alerts.
A closer look
Specifications.
The details that matter.
Specifications
Compatibility
The two sensors use Zigbee 3.0 and pair with the included camera hub through mydlink; their separate maker sheets list a 40 m line-of-sight Zigbee range, subject to walls and interference. Optional storage can use microSDXC up to 256 GB or an ONVIF Profile S compatible recorder; cloud recording depends on current plan. Assistant integrations depend on region and current service support.
App and setup
Power the indoor DCS-8330LH camera with its specified 5 V/2 A Micro USB adapter and connect it to 2.4 GHz Wi-Fi through the mydlink app and account. Pair the DCH-B112 and DCH-B122 to the camera hub in the app; position the door sensor and magnet close enough to register an opening, and mount the motion sensor for its intended viewing area.
All three components are specified for indoor operation at 0–40 °C. The camera specifies 20–80% non-condensing operating humidity; the door sensor 20–80% and the motion sensor 20–80%. Keep devices and mains adapter away from water and heat. Unplug the camera before gentle cleaning and follow the component manuals for safe battery replacement. The CR2450 is a coin cell; keep loose and removed cells away from children.
Indoor camera.
Required: suitable 2.4 GHz Wi-Fi and Internet, a compatible iOS/Android device and mydlink account. Optional: separately obtained microSDXC card up to 256 GB, cloud-recording plan or compatible ONVIF Profile S recorder. Replacement CR2 and CR2450 cells are needed over the sensors’ life.
microSDXC card up to 256 GB
Compatible ONVIF Profile S recorder
mydlink cloud plan
Individual maker figures: camera 140 g ±5%; door main unit 24.4 g with CR2 cell and magnetic trigger 8.4 g; motion sensor 44 g with CR2450 cell. These are device masses, not an Australian kit or shipping mass.
Three distinct device bodies; no single assembled-kit dimension. Camera: 83.9 × 74.4 × 108.8 mm (L × W × H). Door sensor main unit: 67.0 × 20.0 × 20.0 mm; magnetic trigger: 46.2 × 12.5 × 20.0 mm. Motion sensor: 51.3 × 51.3 × 34.6 mm.
The camera component sheet specifies a 100–240 V AC adapter with 5 V DC / 2 A Micro USB output, 2.4 GHz Wi-Fi, Zigbee 3.0 and Bluetooth LE 4.0, and lists RCM. The sensor component sheets list RCM and 3 V CR2/CR2450 batteries.
