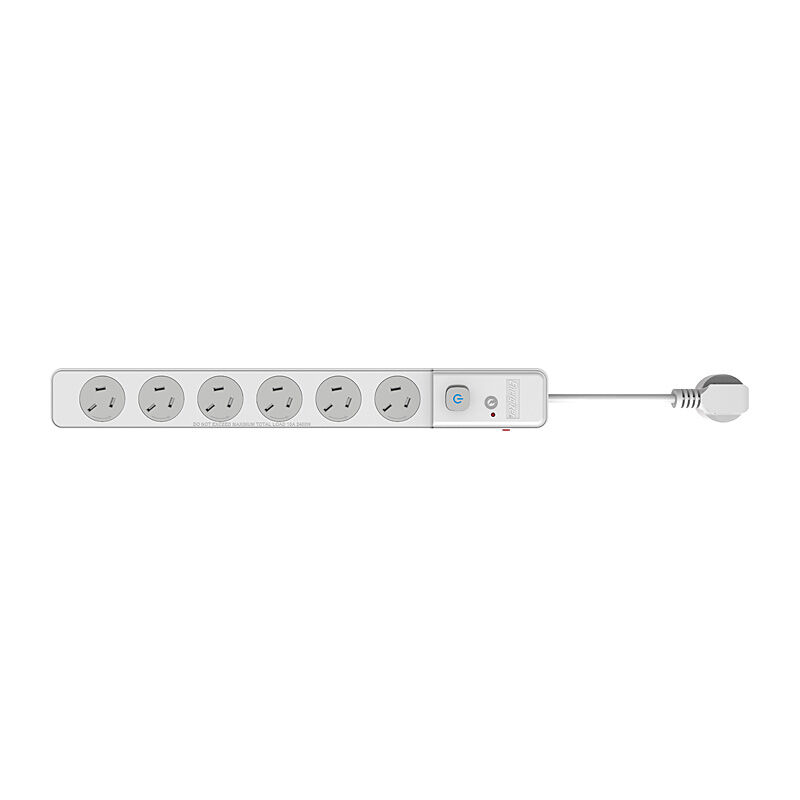

Energizer HT-PBAU06A Six-Outlet Surge Powerboard
The Energizer HT-PBAU06A provides six Australian mains outlets from one wall connection. It suits a desk or household equipment area with several compatible devices, provided their combined demand stays within the board’s electrical rating.
Useful features
At a glanceSix mains outlets
Six mains outlets: provides the selected six-socket configuration for compatible Australian equipment.
175 J surge protection
175 J surge protection: records the exact model's attributed surge rating without promising all-event protection.
Overload protection
Overload protection: provides the protection against excessive board loading.
Push-button switch with light
Push-button switch with light: supplies a master control and visible status indication.
10 A / 240 V supply rating
10 A / 240 V supply rating: identifies the electrical operating limit.
2400 W combined maximum
2400 W combined maximum: limits the total connected load rather than each individual outlet.
Rotated sockets with dust protection
Rotated sockets with dust protection: provide the outlet arrangement for this six-socket board; connected plug sizes still need clearance.
The useful features
- Six mains outlets: provides the selected six-socket configuration for compatible Australian equipment.
- 175 J surge protection: records the exact model's attributed surge rating without promising all-event protection.
- Overload protection: provides the protection against excessive board loading.
- Push-button switch with light: supplies a master control and visible status indication.
- 10 A / 240 V supply rating: identifies the electrical operating limit.
- 2400 W combined maximum: limits the total connected load rather than each individual outlet.
- Rotated sockets with dust protection: provide the outlet arrangement for this six-socket board; connected plug sizes still need clearance.
The useful details
Know what
you’re getting.
The Energizer HT-PBAU06A provides six Australian mains outlets from one wall connection. It suits a desk or household equipment area with several compatible devices, provided their combined demand stays within the board’s electrical rating.
A push-button master switch and light give control and indication at the board. The sockets use a rotated arrangement with dust protection, but larger power-adapter bodies still need adequate clearance. Surge protection is rated at 175 J, with a separate overload-protection function for excessive loading.
The total maximum is 10 A at 240 V and 2400 W. These are board-wide limits; six outlets do not provide six independent 2400 W supplies. The attached lead uses H05VV-F 3G 1.0 mm cable with an Australian plug. Use appropriate devices, check their combined demand and follow the board’s placement and safety instructions.
This model is an AC powerboard, rather than a USB charger or battery backup. It needs an active wall supply, and its protection rating does not promise protection against every possible surge. Box measurements, where recorded for freight, describe packaging rather than the size of the board body.
A six-socket Australian powerboard with surge and overload protection.
A six-socket Australian powerboard with surge and overload protection.
Providing extra compatible Australian mains connections.
Users with a suitable Australian mains outlet and compatible connected equipment.
Teacher Superstore lists surge and overload protection, 175 J surge protection, 10 A / 240 V supply and a 2400 W maximum total load. Its cord description is H05VV-F 3G 1.0 mm with an Australian plug. The Good Guys separately lists the same model and describes rotated sockets with dust protection.
A closer look
Specifications.
The details that matter.
Specifications
Compatibility
Suitable Australian mains connection and devices within the total load rating.
Use and product notes
Plug into a suitable mains socket and keep total connected load within the specified limit.
Surge Protection: 175 joules
The Good Guys provides 405 × 55 × 75 mm and 1 kg as box measurements, not as the board body size. Do not infer USB ports or a higher protection rating from another Energizer board.
Mains socket and connected devices; cables or chargers as required.
Voltage/Current: 10A, 240V
