Eve · Smart blind controls

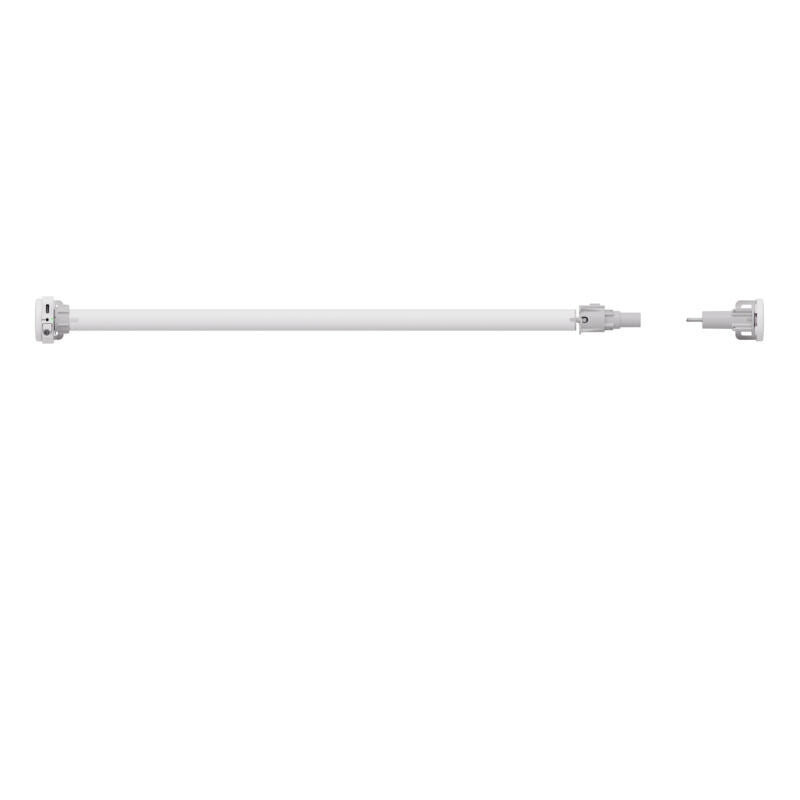

Eve Motionblinds Matter Upgrade Kit for Small Roller-Blind Tubes
The Eve Motionblinds small-tube upgrade kit adds a rechargeable motor to a compatible existing roller blind. It replaces the chain mechanism with the supplied motor and fittings, allowing the blind to participate in supported smart-home control.
Useful features
At a glanceExisting-blind motor upgrade
Existing-blind motor upgrade: replaces a compatible chain mechanism rather than supplying a complete blind.
25–30 mm bare tube diameter
25–30 mm bare tube diameter: defines the selected small-kit fit range.
570 mm minimum blind width
570 mm minimum blind width: provides the manufacturer's installation-size threshold.
0.5 Nm small motor
0.5 Nm small motor: identifies this variant's rated torque.
USB-C rechargeable battery
USB-C rechargeable battery: supplies the motor-power arrangement.
Matter over Thread
Matter over Thread: requires a compatible controller and Thread border router.
Wall or ceiling mounting
Wall or ceiling mounting: offers the installation options.
Retrofit fittings included
Retrofit fittings included: lists crown, plugs, brackets, white covers and guide with the motor.
The useful features
- Existing-blind motor upgrade: replaces a compatible chain mechanism rather than supplying a complete blind.
- 25–30 mm bare tube diameter: defines the selected small-kit fit range.
- 570 mm minimum blind width: provides the manufacturer's installation-size threshold.
- 0.5 Nm small motor: identifies this variant's rated torque.
- USB-C rechargeable battery: supplies the motor-power arrangement.
- Matter over Thread: requires a compatible controller and Thread border router.
- Wall or ceiling mounting: offers the installation options.
- Retrofit fittings included: lists crown, plugs, brackets, white covers and guide with the motor.
The useful details
Know what
you’re getting.
The Eve Motionblinds small-tube upgrade kit adds a rechargeable motor to a compatible existing roller blind. It replaces the chain mechanism with the supplied motor and fittings, allowing the blind to participate in supported smart-home control. This is an upgrade assembly rather than a complete blind: the existing roller tube, fabric and installation must match the kit's fit requirements.
The selected small motor is rated at 0.5 Nm and is designed for bare tube outside diameters of 25–30 mm. The minimum blind width is 570 mm. Those measurements apply to the tube and blind arrangement described by the manufacturer, not an estimate taken across wrapped fabric. The larger Motionblinds motor has different fit and torque specifications and is not interchangeable by assumption.
A built-in battery recharges through USB-C. Wall or ceiling mounting is supported. Smart operation uses Matter over Thread and requires a separate compatible Matter controller and Thread border router, plus the supported platform app. Feature availability follows the chosen ecosystem and the correctly installed blind.
A rechargeable motor and fitting kit for converting a compatible small-tube roller blind to Matter-over-Thread control.
Motorises a compatible existing roller blind by replacing its chain mechanism.
Adding supported remote operation and automations to an existing roller blind with a 25–30 mm bare tube and at least 570 mm blind width.
Households or small workplaces with the specifically required compatible ecosystem.
Replace the chain drive only on a roller-blind tube matching the small-motor fit limits, then commission the motor with a compatible Matter controller and Thread border router. The blind itself is not included.
A closer look
Specifications.
The details that matter.
Specifications
What’s in the box
Small-tube motor with battery and pull cord
Retrofit crown
Drive plug
End plug
Bracket set and white covers
Quick Start Guide
Compatibility
A compatible hub providing both a Matter controller and Thread border router is required separately. Use the platform app on a current iPhone/iPad or Android 8.1 or later. Feature availability differs by platform.
App and setup
A compatible hub providing both a Matter controller and Thread border router is required separately. Use the platform app on a current iPhone/iPad or Android 8.1 or later. Feature availability differs by platform.
This is an upgrade motor and fittings, not a complete blind. Check bare tube diameter and blind width. The larger motor has different fit and torque specifications and is not this SKU.
A compatible hub providing both a Matter controller and Thread border router is required separately. Use the platform app on a current iPhone/iPad or Android 8.1 or later. Feature availability differs by platform.
Fits 25–30 mm outer-diameter tubes and blinds at least 570 mm wide
