Jackery · Solar panels

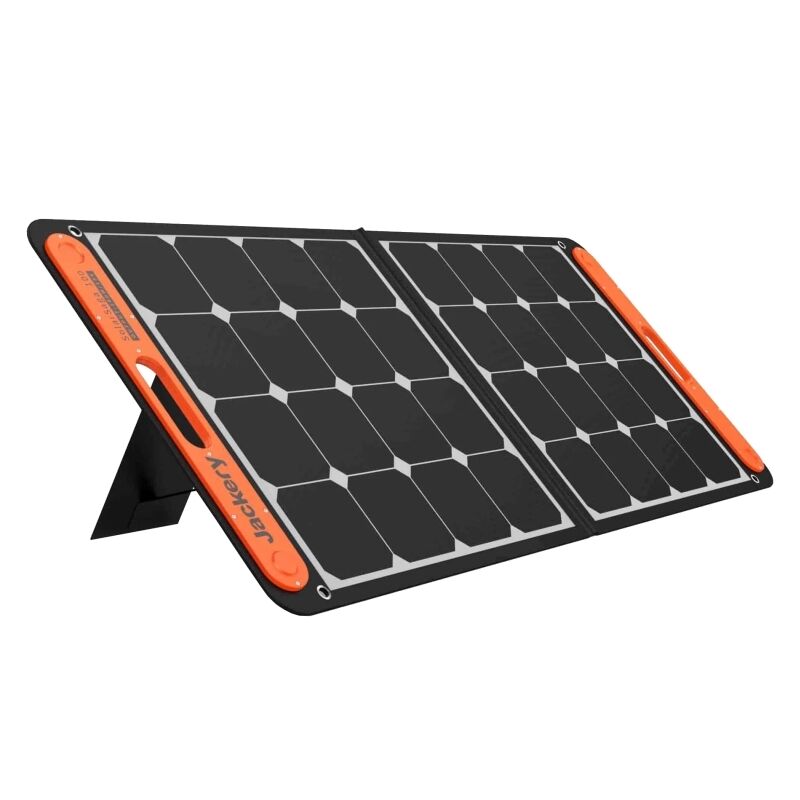

Jackery SolarSaga 100 W Foldable Solar Panel
The 100 W SolarSaga 100 converts sunlight through monocrystalline cells and folds for transport. Two kickstands support positioning, and the ETFE-laminated surface has an IP65 splash-protection rating.
Useful features
At a glance100 W rated solar peak
100 W rated solar peak: generates power from suitable sunlight, with actual output affected by placement and weather.
Foldable monocrystalline design
Foldable monocrystalline design: combines the cell technology with a panel that folds for transport.
Two kickstands
Two kickstands: support a temporary angled setup facing the available sunlight.
USB-C at 5 V/3 A
USB-C at 5 V/3 A: provides a direct output for suitable smaller devices within that rating.
USB-A at 5 V/2.4 A
USB-A at 5 V/2.4 A: gives a second direct-device connection option.
IP65 panel rating
IP65 panel rating: provides the splash-protection statement, while its no-rain and no-soaking instructions still apply.
ETFE-laminated surface
ETFE-laminated surface: identifies the outer panel construction.
4.69 kg mass
4.69 kg mass: helps assess the carrying load before adding a separate power station.
The useful features
- 100 W rated solar peak: generates power from suitable sunlight, with actual output affected by placement and weather.
- Foldable monocrystalline design: combines the cell technology with a panel that folds for transport.
- Two kickstands: support a temporary angled setup facing the available sunlight.
- USB-C at 5 V/3 A: provides a direct output for suitable smaller devices within that rating.
- USB-A at 5 V/2.4 A: gives a second direct-device connection option.
- IP65 panel rating: provides the splash-protection statement, while its no-rain and no-soaking instructions still apply.
- ETFE-laminated surface: identifies the outer panel construction.
- 4.69 kg mass: helps assess the carrying load before adding a separate power station.
The useful details
Know what
you’re getting.
The 100 W SolarSaga 100 converts sunlight through monocrystalline cells and folds for transport. Two kickstands support positioning, and the ETFE-laminated surface has an IP65 splash-protection rating. It also lists direct USB-C 5 V/3 A and USB-A 5 V/2.4 A outputs for smaller compatible devices.
Unfold the panel, position it toward the sun and use the integrated DC connection with a compatible Jackery station, or use an appropriate USB port for a suitable small device. Jackery warns against leaving the panel in rain or soaking it despite the IP65 rating. Actual power varies substantially with orientation and conditions.
The folding format and kickstands make it practical to set up temporarily and reposition as the sun changes. Direct USB outputs can serve suitable smaller devices, while a compatible station stores the generated energy for later use. The panel itself is not a battery. Match the DC connector and charging limits to the intended station before connection. The IP65 statement applies to the panel and does not override Jackery's instruction to avoid soaking or leaving it in rain; it also does not give the connected battery station the same protection.
A foldable 100 W monocrystalline panel with kickstands and direct USB outputs.
A foldable 100 W monocrystalline panel with kickstands and direct USB outputs.
Outdoor solar charging of supported Jackery power stations and small USB devices.
Campers and households preparing a portable solar charging setup.
A closer look
Specifications.
The details that matter.
Specifications
Compatibility
Connections: USB-A x 1 | USB-C x 1 | DC Output x 1
App and setup
Unfold the panel, position it toward the sun and use the integrated DC connection with a compatible Jackery station, or use an appropriate USB port for a suitable small device. Jackery warns against leaving the panel in rain or soaking it despite the IP65 rating. Actual power varies substantially with orientation and conditions.
Dry connectors before use, clean carefully and fold only along designed hinges.
Do not soak or leave in rain. DC connector and station compatibility must be confirmed.
Compatible power station or USB device and correct lead.
4.69 kg
Power Voltage: 20V
Open Circuit Voltage: 24.8V
Short Circuit Voltage: 5.6A
