LG · Portable monitors

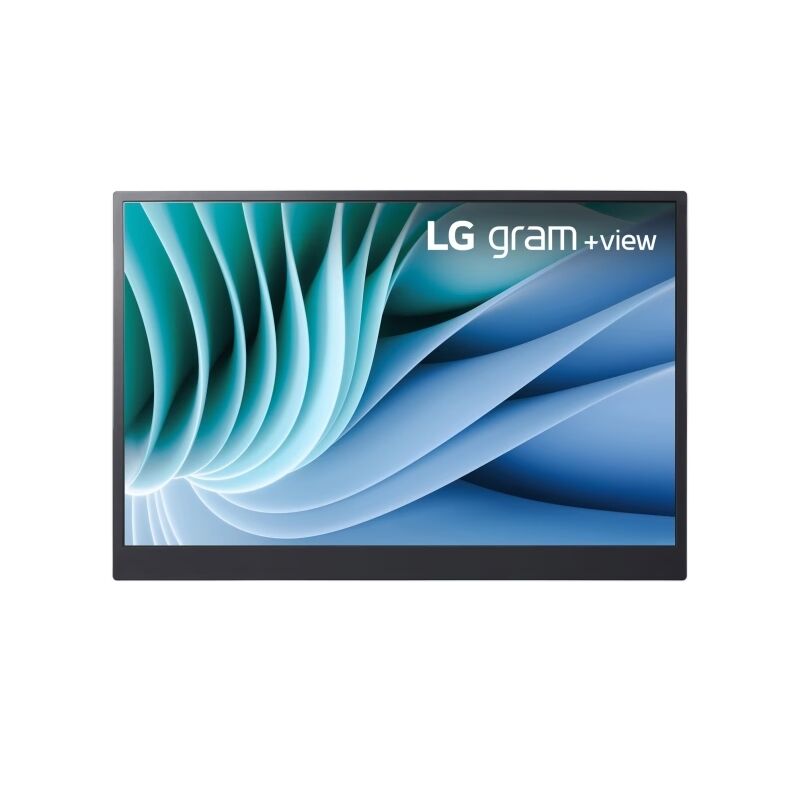

LG gram +view 16MR70 16-inch Portable Monitor
The 16MR70 adds a 16-inch 2560 × 1600 workspace to a compatible laptop. Its 16:10 IPS screen has an anti-glare surface and a 99% typical DCI-P3 gamut.
Useful features
At a glance16-inch WQXGA display
16-inch WQXGA display: provides native 2560 × 1600 pixels.
16
16:10 IPS panel: uses the non-touch, anti-glare format.
USB-C on both sides
USB-C on both sides: offers the DisplayPort Alt Mode connection positions.
Host-powered operation
Host-powered operation: requires the power above 7.5 W at 5 V/1.5 A.
Folio support angles
Folio support angles: provides the 105- and 120-degree positions.
Auto Rotate
Auto Rotate: requires the LG Switch app rather than operating unconditionally.
99% typical DCI-P3
99% typical DCI-P3: gives the manufacturer's colour-gamut rating.
670 g bare display
670 g bare display: excludes the folio cover from the carrying mass.
Aluminium and PC-ABS body
Aluminium and PC-ABS body: identifies the housing materials.
The useful features
- 16-inch WQXGA display: provides native 2560 × 1600 pixels.
- 16:10 IPS panel: uses the non-touch, anti-glare format.
- USB-C on both sides: offers the DisplayPort Alt Mode connection positions.
- Host-powered operation: requires the power above 7.5 W at 5 V/1.5 A.
- Folio support angles: provides the 105- and 120-degree positions.
- Auto Rotate: requires the LG Switch app rather than operating unconditionally.
- 99% typical DCI-P3: gives the manufacturer's colour-gamut rating.
- 670 g bare display: excludes the folio cover from the carrying mass.
- Aluminium and PC-ABS body: identifies the housing materials.
The useful details
Know what
you’re getting.
The 16MR70 adds a 16-inch 2560 × 1600 workspace to a compatible laptop. Its 16:10 IPS screen has an anti-glare surface and a 99% typical DCI-P3 gamut. The aluminium and PC-ABS body weighs 670 g without the folio cover, making it practical to carry between workspaces.
USB-C ports on both sides support display connection. The laptop must provide DisplayPort Alternate Mode and USB power above 7.5 W at 5 V/1.5 A; a USB-C connector alone does not establish compatibility. The folio doubles as a support at 105° or 120°. Auto Rotate requires the LG Switch app, and a low laptop battery can disable the connection.
The 16:10 shape supplies more vertical pixels than a 16:9 screen at the same horizontal resolution, useful for documents and side-by-side work. This is an external display rather than a computer with its own operating system. Its non-touch 60 Hz panel has brightness of 350 cd/m² and 1200:1 typical contrast. The folio weight is separate from the 670 g bare monitor, so carrying mass should not be confused with that bare-body figure. A compatible host must provide both the video signal and sufficient power for the single-cable use.
A portable IPS second screen powered by a compatible laptop through USB-C.
Laptop users needing a portable second display.
A closer look
Specifications.
The details that matter.
Specifications
Compatibility
A laptop USB-C connection providing DisplayPort Alt Mode and USB power above 7.5 W at 5 V/1.5 A.
App and setup
Connect to a compatible host using the display cable and position the folio at a supported angle. Install LG Switch for Auto Rotate.
Laptop USB-C must support DisplayPort Alt Mode and USB PD output above 7.5 W (5 V/1.5 A). Auto Rotate requires LG Switch. Low host battery can disable connection.
Compatible powered laptop is separate.
0.67 kg without folio; 0.92 kg with folio, AU specification
360 ×245.5 ×8.3 mm; AU table does not label axes
Aluminium and PC-ABS chassis; silver
Three-year parts-and-labour manufacturer warranty
For the original purchaser of qualifying AU/NZ units, covering manufacturing or material defects notified within the term. Service-centre repair applies to these screen sizes; transport is excluded. Misuse, unauthorised repair, liquid/surge damage, broken screens and image retention are excluded. Statutory rights are additional.
USB-C powered from compatible laptop; requires DP Alt Mode and USB power above 7.5 W (5 V/1.5 A).
