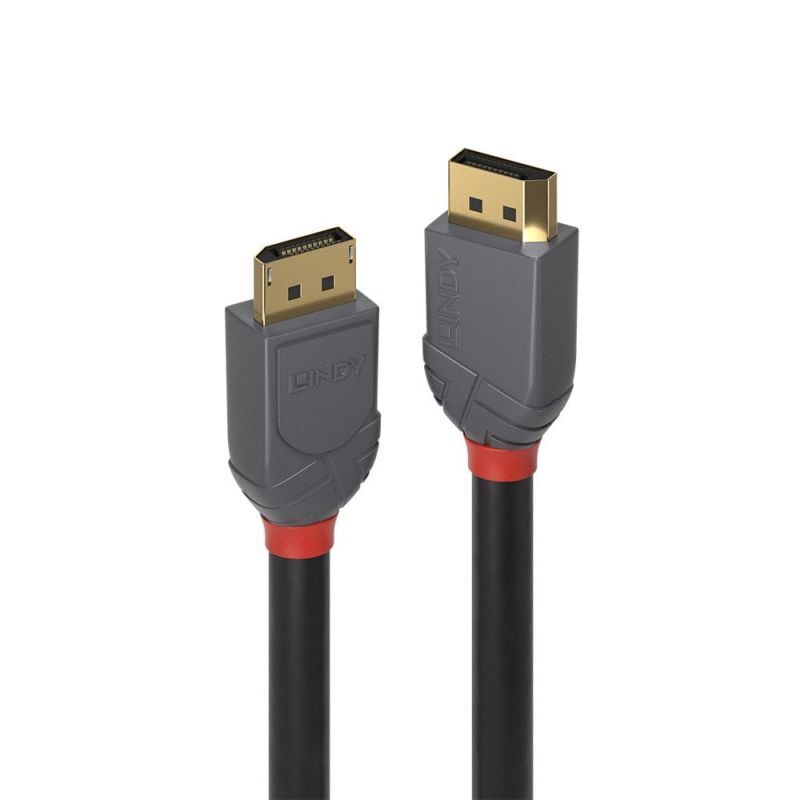

Lindy 5 m Anthra Line DisplayPort Cable
The Lindy 36484 Anthra Line is a 5 m cable with male DisplayPort connectors at both ends. It connects a DisplayPort source to a compatible DisplayPort screen or other receiving device when a longer route is needed than a short desktop lead can cover.
Useful features
At a glance5 m cable length
5 m cable length: reaches a display farther from the source than a short desktop lead.
DisplayPort male ends
DisplayPort male ends: connect compatible DisplayPort source and receiving sockets directly.
Anthra Line construction
Anthra Line construction: identifies Lindy's selected cable range without implying a resolved revision or video mode.
Triple shielding
Triple shielding: provides the stated shielding construction for the signal cable.
28 AWG tinned copper
28 AWG tinned copper: identifies the specified conductor material and gauge.
Gold-plated contacts
Gold-plated contacts: supplies the contact finish at the two connectors.
Black PVC jacket
Black PVC jacket: describes the outer cable construction for routing and installation.
Bend-radius limit
Bend-radius limit: the technical table lists 58.4 mm, helping avoid an excessively tight cable route.
The useful features
- 5 m cable length: reaches a display farther from the source than a short desktop lead.
- DisplayPort male ends: connect compatible DisplayPort source and receiving sockets directly.
- Anthra Line construction: identifies Lindy's selected cable range without implying a resolved revision or video mode.
- Triple shielding: provides the stated shielding construction for the signal cable.
- 28 AWG tinned copper: identifies the specified conductor material and gauge.
- Gold-plated contacts: supplies the contact finish at the two connectors.
- Black PVC jacket: describes the outer cable construction for routing and installation.
- Bend-radius limit: the technical table lists 58.4 mm, helping avoid an excessively tight cable route.
The useful details
Know what
you’re getting.
The Lindy 36484 Anthra Line is a 5 m cable with male DisplayPort connectors at both ends. It connects a DisplayPort source to a compatible DisplayPort screen or other receiving device when a longer route is needed than a short desktop lead can cover.
Its construction uses triple shielding, 28 AWG tinned copper conductors, gold-plated contacts and a black PVC jacket. These details describe the cable’s signal-carrying construction and connector finish. The 58.4 mm bend-radius limit helps plan the route without folding the cable sharply around a desk edge or equipment corner.
Check that both devices provide the required DisplayPort sockets and that the selected video mode is supported by the actual equipment and cable revision. Connectors alone do not guarantee a particular resolution or refresh rate. This listing therefore identifies the connection, length and construction without promising a disputed maximum 4K mode. The source device and display are separate, and the 5 m cable needs a route that avoids excessive strain on its plugs.
A shielded male-to-male DisplayPort cable for a computer and compatible display.
A shielded male-to-male DisplayPort cable for a computer and compatible display.
A shielded male-to-male DisplayPort cable for a computer and compatible display.
A shielded male-to-male DisplayPort cable for a computer and compatible display.
Its Anthra Line construction uses triple shielding, 28 AWG tinned copper conductors and gold-plated contacts. Both ends use male DisplayPort connectors.
A closer look
Specifications.
The details that matter.
Specifications
What’s in the box
1 cable DisplayPort cable
Compatibility
Connector A: DisplayPort Male
Connector B: DisplayPort Male
App and setup
Its Anthra Line construction uses triple shielding, 28 AWG tinned copper conductors and gold-plated contacts. Both ends use male DisplayPort connectors.
Check port compatibility and route the lead or unit away from strain, moisture and heat.
5 m cable; connector body approximately 21 × 38.9 × 13.6 mm
Housing Material: ABS
Connector Plating: 24K Gold 15µm
Pin Plating: 24K Gold 3µm
Colour: Black
Jacket Material: PVC
Conductor Material: Tinned Copper
