Lindy · Display converters

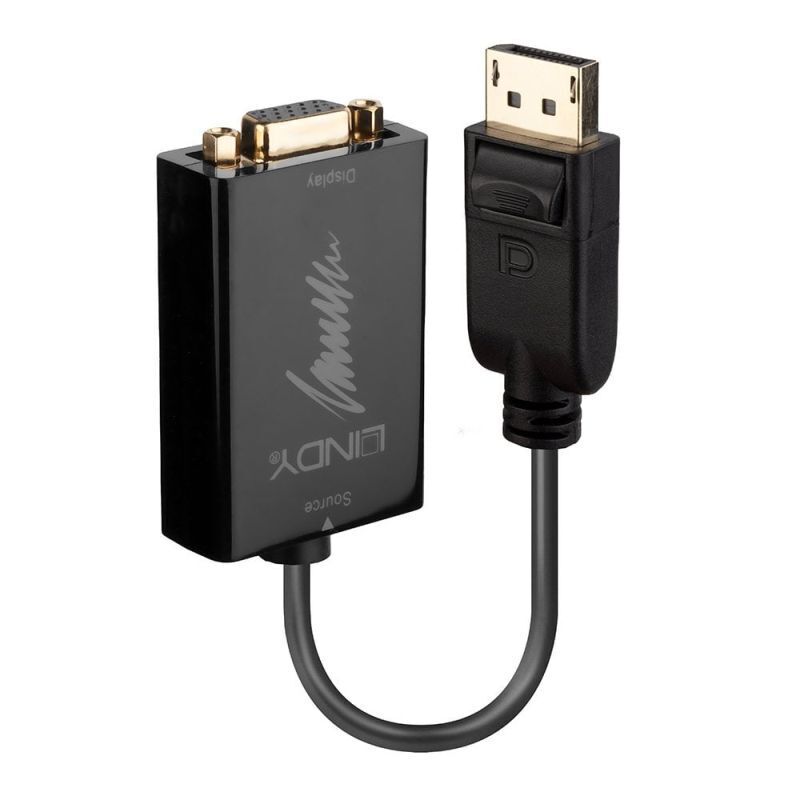

Lindy DisplayPort 1.2 to VGA Active Converter
Lindy 41006 is an active DisplayPort-to-VGA converter for connecting a compatible PC or laptop to an older VGA monitor or projector. It converts the digital video signal into analogue VGA, allowing a legacy display to remain useful when the computer provides DisplayPort rather than a VGA socket.
Useful features
At a glanceDisplayPort-to-VGA direction
DisplayPort-to-VGA direction: connects a DisplayPort source to an analogue VGA display, not the reverse.
Active signal conversion
Active signal conversion: converts the digital video connection for supported legacy displays.
1080p at up to 60 Hz
1080p at up to 60 Hz: supplies the maximum output resolution and refresh rate.
Secondary-display use
Secondary-display use: can add a VGA screen when the computer supports the intended desktop mode.
Plug-and-play conversion
Plug-and-play conversion: connects compatible DisplayPort and VGA equipment without a separate software setup.
150 mm attached lead
150 mm attached lead: gives a short flexible connection from the source port to the converter body.
45 g product mass
45 g product mass: distinguishes the converter's net weight from its packaged weight.
Video-only VGA output
Video-only VGA output: makes clear that a separate audio arrangement is needed when sound is required.
The useful features
- DisplayPort-to-VGA direction: connects a DisplayPort source to an analogue VGA display, not the reverse.
- Active signal conversion: converts the digital video connection for supported legacy displays.
- 1080p at up to 60 Hz: supplies the maximum output resolution and refresh rate.
- Secondary-display use: can add a VGA screen when the computer supports the intended desktop mode.
- Plug-and-play conversion: connects compatible DisplayPort and VGA equipment without a separate software setup.
- 150 mm attached lead: gives a short flexible connection from the source port to the converter body.
- 45 g product mass: distinguishes the converter's net weight from its packaged weight.
- Video-only VGA output: makes clear that a separate audio arrangement is needed when sound is required.
The useful details
Know what
you’re getting.
Lindy 41006 is an active DisplayPort-to-VGA converter for connecting a compatible PC or laptop to an older VGA monitor or projector. It converts the digital video signal into analogue VGA, allowing a legacy display to remain useful when the computer provides DisplayPort rather than a VGA socket.
The output supports up to 1920 × 1080 at 60 Hz. A secondary display can be added when the computer’s graphics system supports the intended arrangement. Set the source to a mode accepted by the receiving screen; the converter’s maximum is a limit rather than a promise that every display accepts it.
The DisplayPort plug connects to the computer, and a separate VGA lead runs from the converter to the display. Its 150 mm attached lead gives some positioning flexibility around the host socket. The converter body is approximately 38 × 61 × 17 mm and weighs 45 g, excluding retail packaging.
Conversion is one-way from DisplayPort source to VGA display. VGA carries video only, so audio requires a separate arrangement if needed. The monitor, VGA cable and computer are separate equipment. Plug-and-play operation still requires compatible source hardware and a supported display mode.
A closer look
Specifications.
The details that matter.
Specifications
What’s in the box
1 unit DisplayPort to VGA converter
Compatibility
Interface Standard: DisplayPort 1.2, VGA
Input: DisplayPort Male
Output: VGA Female
App and setup
Connect the DisplayPort plug to the computer and a suitable VGA cable from the converter to the display. The maximum output is 1920 × 1080 at 60 Hz. This is video only; VGA does not carry the audio available on some digital display connections.
Check port compatibility and route the lead or unit away from strain, moisture and heat.
An approximately 38 × 61 × 17 mm converter body, 150 mm attached cable and 45 g net weight.
Net Weight: 0.045kg (0.1lb)
38 × 61 × 17 mm converter body; 150 mm lead
Housing Material: TPE
Jacket Material: PVC
Colour: Black
