Pioneer · Dash cameras

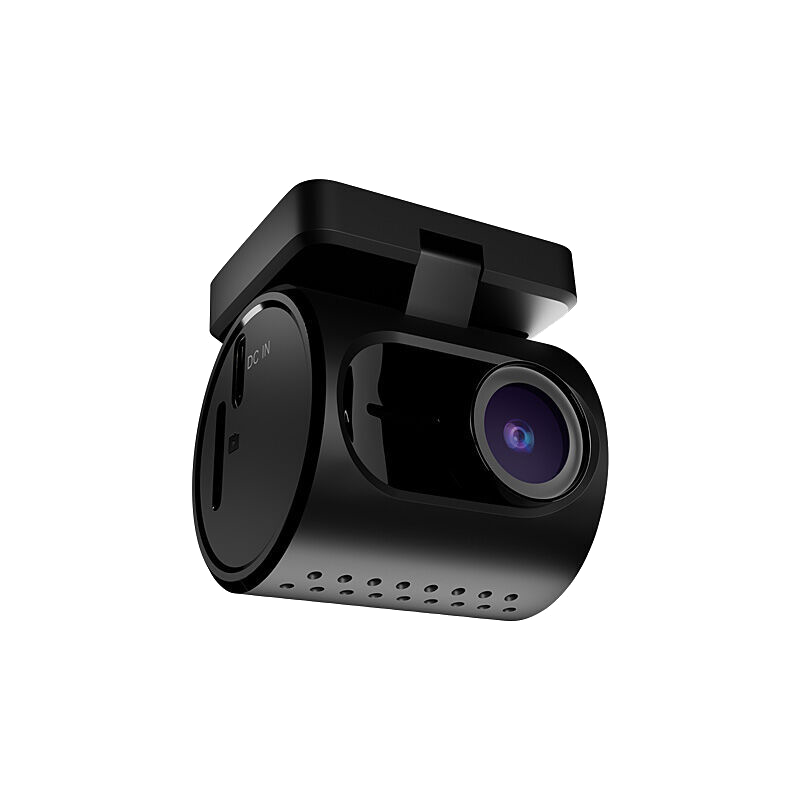

Pioneer VREC-H120SC 1.5K Front Dash Camera
The VREC-H120SC is a front-facing drive recorder that mounts to the windscreen. It records up to 1.5K resolution through a 124-degree diagonal field of view, with a 2 MP GC2083 sensor and WDR processing.
$128.99
In stock
Useful features
At a glanceFront video up to 1.5K
Front video up to 1.5K: records the road ahead, with the disputed frame rate left unrated.
G-sensor event recording
G-sensor event recording: marks footage around a detected impact using the event function.
WDR processing
WDR processing: provides the camera's wide-dynamic-range image processing.
Local Wi-Fi app connection
Local Wi-Fi app connection: supports playback and settings through a compatible Pioneer phone application.
64 GB card included
64 GB card included: supplies recording media, with support for Class 10-or-faster cards up to 128 GB.
Optional parking recording
Optional parking recording: requires the separately purchased RD-HWK300 kit and appropriate professional installation.
124-degree diagonal view
124-degree diagonal view: defines the front camera's angle of coverage.
One- or three-minute loop segments
One- or three-minute loop segments: divide ongoing recordings into the selectable intervals.
Supercapacitor backup
Supercapacitor backup: supplies the backup-power design, distinct from a portable battery recorder.
Installation components listed
Installation components listed: the pack includes mount, adhesive, power adapter, 3.5 m cable, film and guide with the camera.
The useful features
- Front video up to 1.5K: records the road ahead, with the disputed frame rate left unrated.
- G-sensor event recording: marks footage around a detected impact using the event function.
- WDR processing: provides the camera's wide-dynamic-range image processing.
- Local Wi-Fi app connection: supports playback and settings through a compatible Pioneer phone application.
- 64 GB card included: supplies recording media, with support for Class 10-or-faster cards up to 128 GB.
- Optional parking recording: requires the separately purchased RD-HWK300 kit and appropriate professional installation.
- 124-degree diagonal view: defines the front camera's angle of coverage.
- One- or three-minute loop segments: divide ongoing recordings into the selectable intervals.
- Supercapacitor backup: supplies the backup-power design, distinct from a portable battery recorder.
- Installation components listed: the pack includes mount, adhesive, power adapter, 3.5 m cable, film and guide with the camera.
The useful details
Know what
you’re getting.
The VREC-H120SC is a front-facing drive recorder that mounts to the windscreen. It records up to 1.5K resolution through a 124-degree diagonal field of view, with a 2 MP GC2083 sensor and WDR processing. Loop recording can use one- or three-minute segments, and the G-sensor supports event recording around an impact.
The camera has no built-in display, GPS, rear camera or ADAS functions. Recorded footage can be played from the microSD card on a computer or through the compatible Pioneer phone app. A card must be installed for recording.
The supplied mount, power adapter and 3.5 m cable support installation in a compatible vehicle. Parking mode requires the separately purchased RD-HWK300 hardwire kit and installation by a trained automotive technician. The guide specifies Android 11 or later and iOS 13 or later for the app.
The screenless design relies on the app or card playback rather than an on-camera monitor for reviewing footage. That suits a compact installation, but phone compatibility is important if local app access is part of the intended routine. Event recording and loop segments serve different purposes: the G-sensor marks an impact-related event while loop recording manages continuing footage in segments. Wi-Fi connects locally to the phone and does not establish cellular remote monitoring. Parking recording is an additional installation requiring the specified hardwire kit, not a function delivered simply by leaving the accessory-socket adapter connected.
A front-facing vehicle dash camera with windscreen mount.
Records driving video and audio to a compatible microSD card, with loop and event recording.
Keeping a video record of journeys and detected incidents; optional parking recording when properly hardwired.
Drivers with a compatible vehicle and a suitable safe windscreen mounting position.
A closer look
Specifications.
The details that matter.
Specifications
What’s in the box
1 unit VREC-H120SC camera with mount and double-sided adhesive
1 unit Power adapter
1 cable 3.5 m power cable
1 film Electrostatic film
1 guide Quick-start guide
64 GB microSD card
Compatibility
Android 11+ or iOS 13+ app; Class 10+ microSD up to 128 GB; RD-HWK300 for parking operation.
App and setup
Install according to the Pioneer guide without obstructing the road view or airbags. Use a compatible 12 V vehicle accessory socket and the supplied adapter. Install a Class 10 or faster microSD card, then pair a supported phone when using the app.
Keep away from liquids. Secure the camera and wiring so neither obstructs visibility, controls or airbag deployment. The guide recommends trained installation personnel. The adhesive installation must be left for 24 hours to establish strength.
No display, GPS, ADAS, rear camera or simultaneous front/rear recording. Parking requires the optional kit. Wi-Fi/app playback does not establish remote cellular monitoring.
RD-HWK300 hardwire kit is optional for ordinary driving recording but required for parking mode; a trained automotive technician must install it.
RD-HWK300 hardwire kit is optional for ordinary driving recording but required for parking mode; a trained automotive technician must install it.
2.4 GHz Wi-Fi; USB-C device power at the 5 V, 1.5 A / 2 A; supplied vehicle adapter intended for a 12 V accessory socket.
