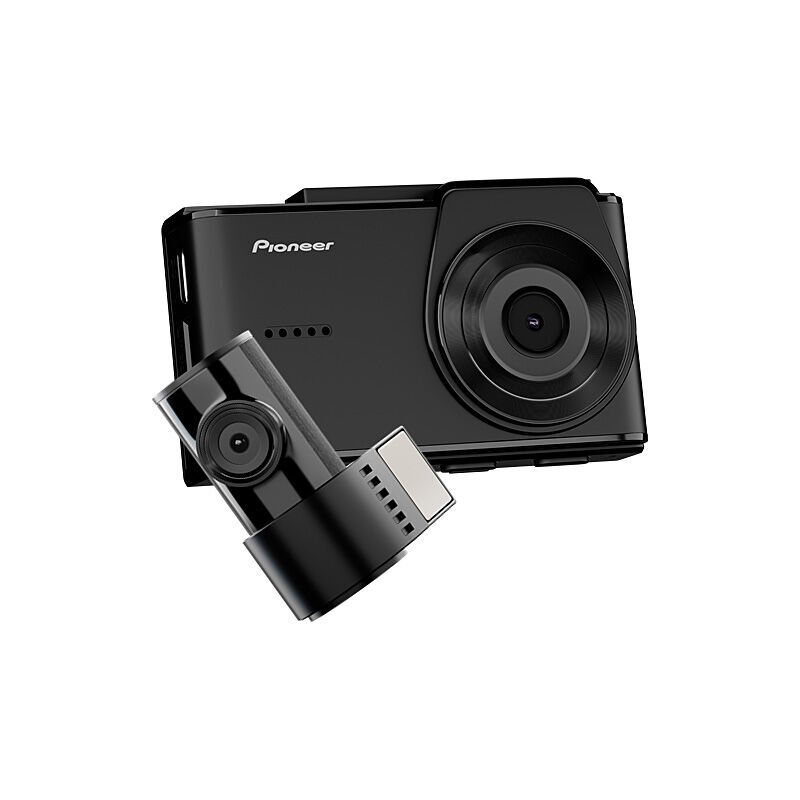

Pioneer VREC-H520DC Dash Camera
The Pioneer VREC-H520DC records 2K video from its front camera and Full HD video from the included rear camera. The front unit uses a 5 MP Sony STARVIS 2 IMX675 sensor with HDR processing and a 135-degree diagonal field of view.
$342.64
In stock
Useful features
At a glance2K front plus Full HD rear
2K front plus Full HD rear: records both vehicle directions with the two resolution limits.
3-inch local display
3-inch local display: supports setup and playback directly on the front unit.
Built-in GPS
Built-in GPS: adds the location function for journey and recording review.
G-sensor event capture
G-sensor event capture: the AU page lists footage from 20 seconds before and after a detected incident.
Loop and time-lapse recording
Loop and time-lapse recording: offers the recording modes for supported driving and parking arrangements.
Optional parking power
Optional parking power: requires the separate RD-HWK300 kit and trained automotive installation.
Sony STARVIS 2 front sensor
Sony STARVIS 2 front sensor: the 5 MP IMX675 and HDR processing form the front imaging system.
128 GB card included
128 GB card included: provides recording media, with compatible Class 10-or-faster cards supported up to 512 GB.
Local 2.4 GHz Wi-Fi
Local 2.4 GHz Wi-Fi: links to a compatible smartphone app without promising remote cellular surveillance.
Rear camera and lead included
Rear camera and lead included: the box list supplies the second view and its connecting cable.
The useful features
- 2K front plus Full HD rear: records both vehicle directions with the two resolution limits.
- 3-inch local display: supports setup and playback directly on the front unit.
- Built-in GPS: adds the location function for journey and recording review.
- G-sensor event capture: the AU page lists footage from 20 seconds before and after a detected incident.
- Loop and time-lapse recording: offers the recording modes for supported driving and parking arrangements.
- Optional parking power: requires the separate RD-HWK300 kit and trained automotive installation.
- Sony STARVIS 2 front sensor: the 5 MP IMX675 and HDR processing form the front imaging system.
- 128 GB card included: provides recording media, with compatible Class 10-or-faster cards supported up to 512 GB.
- Local 2.4 GHz Wi-Fi: links to a compatible smartphone app without promising remote cellular surveillance.
- Rear camera and lead included: the box list supplies the second view and its connecting cable.
The useful details
Know what
you’re getting.
The Pioneer VREC-H520DC records 2K video from its front camera and Full HD video from the included rear camera. The front unit uses a 5 MP Sony STARVIS 2 IMX675 sensor with HDR processing and a 135-degree diagonal field of view. Its 3-inch display provides local setup and playback.
Built-in GPS, a G-sensor and loop recording support review of recorded journeys and events. A 128 GB microSD card is included; the camera supports Class 10 or faster cards up to 512 GB. A compatible smartphone can connect over local 2.4 GHz Wi-Fi.
Parking recording requires the optional RD-HWK300 hardwire kit installed by a trained automotive technician. Driver alerts are warnings only. The supplied vehicle power adapter is specified for a 12 V accessory socket, and the camera receives 5 V through USB-C.
Its display makes positioning and playback possible at the camera, while the phone app is another local access option. HDR processing belongs to the front imaging system and should not be transferred as an unsupported specification to the rear camera. H.265 video encoding and selectable one- or three-minute loop segments support the recorded-file workflow. Keep the camera installation and wiring clear of sightlines and airbags, and do not interpret its driver-warning features as control of the vehicle.
A closer look
Specifications.
The details that matter.
Specifications
What’s in the box
1 unit VREC-H520DC front camera
1 unit Vehicle power adapter
1 cable Power cable
1 sheet Electrostatic film
1 unit Adhesive mounting bracket
1 document Quick Start Guide
1 unit Rear camera
1 cable Rear camera connecting cable
1 card 128 GB microSD card
Compatibility
Manufacturer lists the RD-HWK300 parking-power kit. MicroSD capacity up to 512 GB. Check current companion-app support.
App and setup
Correct vehicle mounting, compatible microSD and power connection. Parking mode requires separate RD-HWK300 hardwire kit with professional installation.
Use a trained automotive installer for hardwire power. Keep cameras and cables clear of the driver’s view, airbags and vehicle controls. Keep away from liquids. Switch off before inserting/removing microSD. Clean and dry the mounting surface and allow about 24 hours for adhesive bonding, following the manual.
Driver alerts are warnings only. Wi-Fi/app live view does not establish internet-based remote monitoring. Parking mode needs separate hardwire power.
RD-HWK300 hardwire kit and professional installation for parking mode. Replacement compatible microSD media as needed.
RD-HWK300 hardwire kit and professional installation
Camera: 5 V DC, 2 A through USB-C. Supplied adapter: 12 V vehicle accessory socket only. Local Wi-Fi: 2.4 GHz.
