HP · Docks & hubs

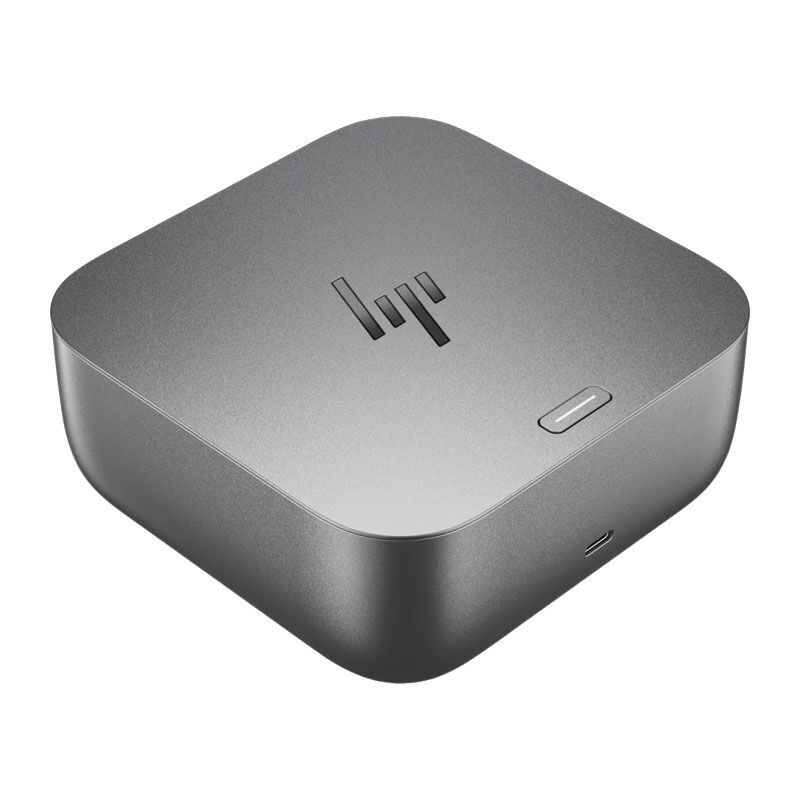

HP Thunderbolt 4 100W G6 Dock, 9X472UT
The HP G6 dock connects a compatible laptop to a desktop workspace through its supplied Thunderbolt 4 cable. It offers up to 100 W of host charging, DisplayPort and HDMI display outputs, USB-A and USB-C peripheral ports, and 2.5 Gb Ethernet.
$319.58
In stock
Useful features
At a glanceThunderbolt 4 host link
Thunderbolt 4 host link: connects a compatible laptop to the dock's desk peripherals through the supplied 1 m cable.
Up to 100 W host charging
Up to 100 W host charging: powers a supported laptop within its USB Power Delivery requirements and the dock's limit.
DisplayPort and HDMI outputs
DisplayPort and HDMI outputs: two DisplayPort 1.4 ports and HDMI 2.1 provide external-display connection options.
USB-A and USB-C peripherals
USB-A and USB-C peripherals: accommodate desk accessories, with selected USB-C ports supplying up to 15 W.
2.5 Gb Ethernet
2.5 Gb Ethernet: supports a higher-speed wired network when the host and infrastructure also support it.
Up to four displays
Up to four displays: applies only to host and DisplayPort/DSC configurations, not every USB-C computer.
120 W external adapter
120 W external adapter: supplies the dock, distinct from the maximum 100 W delivered to the laptop.
HP Sure Start firmware checks
HP Sure Start firmware checks: provides checks and recovery at startup and disconnect without promising runtime protection.
Nano lock slot
Nano lock slot: permits a compatible separately purchased security lock to secure the dock.
121 × 121 × 49.5 mm body
121 × 121 × 49.5 mm body: gives a defined desktop footprint for the 740 g dock.
The useful features
- Thunderbolt 4 host link: connects a compatible laptop to the dock's desk peripherals through the supplied 1 m cable.
- Up to 100 W host charging: powers a supported laptop within its USB Power Delivery requirements and the dock's limit.
- DisplayPort and HDMI outputs: two DisplayPort 1.4 ports and HDMI 2.1 provide external-display connection options.
- USB-A and USB-C peripherals: accommodate desk accessories, with selected USB-C ports supplying up to 15 W.
- 2.5 Gb Ethernet: supports a higher-speed wired network when the host and infrastructure also support it.
- Up to four displays: applies only to host and DisplayPort/DSC configurations, not every USB-C computer.
- 120 W external adapter: supplies the dock, distinct from the maximum 100 W delivered to the laptop.
- HP Sure Start firmware checks: provides checks and recovery at startup and disconnect without promising runtime protection.
- Nano lock slot: permits a compatible separately purchased security lock to secure the dock.
- 121 × 121 × 49.5 mm body: gives a defined desktop footprint for the 740 g dock.
The useful details
Know what
you’re getting.
The HP G6 dock connects a compatible laptop to a desktop workspace through its supplied Thunderbolt 4 cable. It offers up to 100 W of host charging, DisplayPort and HDMI display outputs, USB-A and USB-C peripheral ports, and 2.5 Gb Ethernet. Its capabilities depend on the host connection and the computer’s video and USB Power Delivery support.
Maximum combinations require the host’s relevant DisplayPort streams, DisplayPort 1.4 and Display Stream Compression; four-display support is not universal across computers. HP Quick Connect and network-management functions also have host, software and configuration requirements. The included power adapter is rated 120 W, distinct from the maximum 100 W laptop charging output.
For a supported laptop, the dock can keep monitors, network and desk accessories connected in one place, reducing the number of connections made when returning to work. The supplied 1 m Thunderbolt cable provides the host link, while the 121 mm-square body occupies a defined area on the desk. USB-C peripheral ports offer up to 15 W for supported devices, separately from laptop charging. Network speed requires a matching 2.5 Gb connection and infrastructure. A Nano lock slot accepts a separately purchased compatible lock.
Connects supported displays, peripherals and wired networking while supplying laptop power.
Connecting a compatible laptop to a desk workspace.
Laptop users and IT teams with compatible host hardware.
A host cable carries data, display signals and negotiated USB power; the external adapter powers the dock.
A closer look
Specifications.
The details that matter.
Specifications
Compatibility
Host USB-C must provide supported DisplayPort Alt Mode, Thunderbolt or USB4 for data/video, and USB PD for charging. HP-specific wake, MAC passthrough and Quick Connect are limited to supported hosts. HP does not supply Mac Ethernet/audio drivers in this white paper. Not every function works on every OS.
App and setup
Connect the 120 W adapter and host cable, approve the Thunderbolt device if prompted, and install required drivers/firmware. Check the white paper’s display matrix for the host.
Host USB-C must provide supported DisplayPort Alt Mode, Thunderbolt or USB4 for data/video, and USB PD for charging. HP-specific wake, MAC passthrough and Quick Connect are limited to supported hosts. HP does not supply Mac Ethernet/audio drivers in this white paper. Not every function works on every OS.
Compatible laptop, monitors, display cables, peripherals and Ethernet network are separate. Nano security lock is optional.
Nano security lock
740 g
121 W ×121 D ×49.5 H mm
120 W external adapter. wireless management is not a substitute for host display/data connection.
