Lindy · Docks & hubs

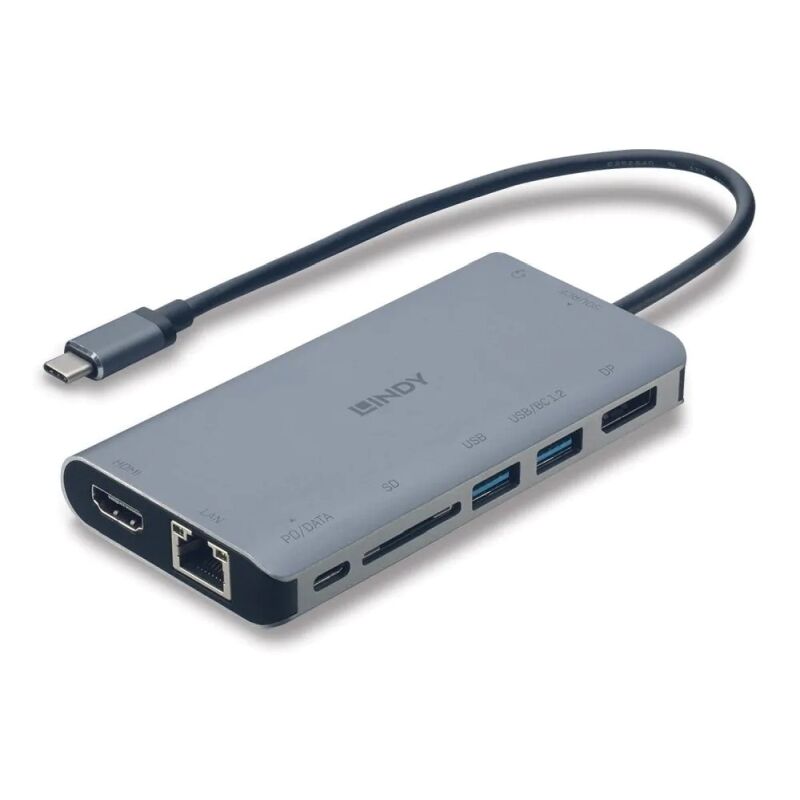

Lindy DST-Mini XT USB-C Laptop Dock
The Lindy 43323 DST-Mini XT expands a USB-C laptop into a compact desktop setup. It combines HDMI and DisplayPort displays with USB-A, USB-C, wired Gigabit Ethernet, an SD slot and a combined 3.5 mm audio connection.
$126.28
In stock
Useful features
At a glanceHDMI and DisplayPort outputs
HDMI and DisplayPort outputs: offer two display-connection types from a host supporting USB-C DisplayPort Alternate Mode.
5 Gbit/s USB data ports
5 Gbit/s USB data ports: two USB-A and one USB-C accommodate compatible desk peripherals.
Gigabit Ethernet and SD
Gigabit Ethernet and SD: add a wired-network connection and compatible memory-card access.
Combined 3.5 mm audio
Combined 3.5 mm audio: provides the headset-style audio connection.
Single 4K/30 Hz or dual 1080p
Single 4K/30 Hz or dual 1080p: states the display configurations without promising dual 4K.
Up-to-100 W PD pass-through
Up-to-100 W PD pass-through: requires a suitable separate USB-C supply and a compatible charging host.
Aluminium 115 g body
Aluminium 115 g body: provides the housing material and net mass for a compact mobile dock.
116.5 × 61 × 16 mm size
116.5 × 61 × 16 mm size: gives the dock's footprint for a small desk or laptop bag.
The useful features
- HDMI and DisplayPort outputs: offer two display-connection types from a host supporting USB-C DisplayPort Alternate Mode.
- 5 Gbit/s USB data ports: two USB-A and one USB-C accommodate compatible desk peripherals.
- Gigabit Ethernet and SD: add a wired-network connection and compatible memory-card access.
- Combined 3.5 mm audio: provides the headset-style audio connection.
- Single 4K/30 Hz or dual 1080p: states the display configurations without promising dual 4K.
- Up-to-100 W PD pass-through: requires a suitable separate USB-C supply and a compatible charging host.
- Aluminium 115 g body: provides the housing material and net mass for a compact mobile dock.
- 116.5 × 61 × 16 mm size: gives the dock's footprint for a small desk or laptop bag.
The useful details
Know what
you’re getting.
The Lindy 43323 DST-Mini XT expands a USB-C laptop into a compact desktop setup. It combines HDMI and DisplayPort displays with USB-A, USB-C, wired Gigabit Ethernet, an SD slot and a combined 3.5 mm audio connection.
One external display can run up to 3840 × 2160 at 30 Hz, or both HDMI and DisplayPort can be used at up to 1920 × 1080 according to the maker. The laptop USB-C port must support DisplayPort Alternate Mode for video; a USB-C socket alone does not guarantee display output.
A suitable separate USB-C power supply can feed up to 100 W through the dock to the laptop. The 116.5 × 61 × 16 mm aluminium dock weighs about 115 g. The maker box list contains the dock and manual; an external power supply and display cables are separate.
The dock can keep several desk connections together when a supported laptop is moved between locations. Ethernet provides a wired-network option, the SD slot gives access to compatible memory cards, and the combined audio socket accommodates a suitable headset arrangement. The host USB-C connection carries the available data and video functions; it cannot create DisplayPort Alternate Mode in a laptop that lacks it.
Expands a compatible USB-C laptop with display, network, USB, card and audio connections.
A closer look
Specifications.
The details that matter.
Specifications
What’s in the box
1 unit USB-C laptop mini dock
1 document Manual
Compatibility
Interface Standard: USB 3.2 / 3.1 Gen 1 / USB 3.0, HDMI 1.4, DP 1.2, Gigabit LAN, Audio (combo)
Compatibility: USB Type C or Thunderbolt 3 equipped computers with DisplayPort Alternate Mode support
Inputs: 1 x USB Type C (Male)
Outputs: 1x HDMI (Female), 1x DisplayPort (Female), 1x RJ45 (Female), 2x USB Type A (Female), 1x USB Type C (Female) / 1x SD slot, 1x 3.5mm Audio (Female)
Use and product notes
One external display can run up to 3840 × 2160 at 30 Hz, or both HDMI and DisplayPort can be used at up to 1920 × 1080 according to the maker. The laptop USB-C port must support DisplayPort Alternate Mode for video; a USB-C socket alone does not guarantee display output.
Check port compatibility and route the lead or unit away from strain, moisture and heat.
A suitable separate USB-C power supply can feed up to 100 W through the dock to the laptop. The 116.5 × 61 × 16 mm aluminium dock weighs about 115 g. The maker box list contains the dock and manual; an external power supply and display cables are separate.
A suitable separate USB-C power supply can feed up to 100 W through the dock to the laptop. The 116.5 × 61 × 16 mm aluminium dock weighs about 115 g. The maker box list contains the dock and manual; an external power supply and display cables are separate.
Net Weight: 0.115kg (0.25lb)
116.5 × 61 × 16 mm
Housing Material: Aluminium
Colour: Grey
